Battery Internal Resistance Tester YCR-2000M

Aluminum-Cell-Tester
  • Aluminum-Cell-Tester
  • 18650-Cell-Resistance-Tester
  • Steel-Cell-Resistance-Tester
  • Cylinder-Battery-Voltage-Tester
  • Cylinder-Battery-Resistance
Model No.︰YCR-2000M
Brand Name︰BEST
Country of Origin︰Hong Kong S.A.R
Unit Price︰US $ 535 / pcs
Minimum Order︰1 pcs
Share on:

 Total 19 Related Items
Prev89101112Next

Product Description

YCR-200M Automatic battery internal resistance tester,which is shortenedly termed as machine hereafter, is applied to measure the inner resistance of battery and the damage degree of acidification membrane done to the battery. By imposing 1KHz AC signal on the object tested, the inner resistance can be worked out through measuring its AC voltage drop. (It is different from the principle of measuring resistance with multi-purpose electric meter. It is utilized to measure milliohm-class resistance and can be applied for object with or without power supply, multi-purpose electric meter is used to measure ohm-class resistance and only applied for object with no power supply; so the two cannot be thought as equal.) The quality of battery is measured by magnitude of the resistance value. Generally speaking, the smaller the resistance value is, the better quality the battery has. Therefore, it is quick and reliable to test the quality of battery by measuring the internal resistance
Application:
1. Cadmium nickel battery, metallic hydride nickel battery and lithium battery for mobile phone;
2. Lead acid storage battery and maintenance-free storage battery;
3. Scientific research units researching various batteries or battery producer.

Parameter:

Function



Measuring range

Measuring

scope

Resolution

rate

Measuring

time

Precision

Input

resistance

Measuing range switch

200mΩ

0.1-200mΩ

0.1mΩ

100mS

±0.5 mΩ

-

20mΩ

0.01-20mΩ

0.01mΩ

100mS

±0.02mΩ

-

Voltage

20.00V

0-20.00V

0.01V

100mS

±0.01V

10K

Note:

1. Measuring time: four terminals completedly connected for 100 mS.

2. Measuring frequency: 1KHz±5% square wave

3. Maximum voltage: must be lower than 20.00V.

Price Terms︰FOB SHENZHEN
Payment Terms︰TT IN ADVANCE OR WESTUNION
Packing︰EXPORT CARTON BOX
Lead Time︰7 DAYS AFTER RECEIVE PAYMENT
Product Image

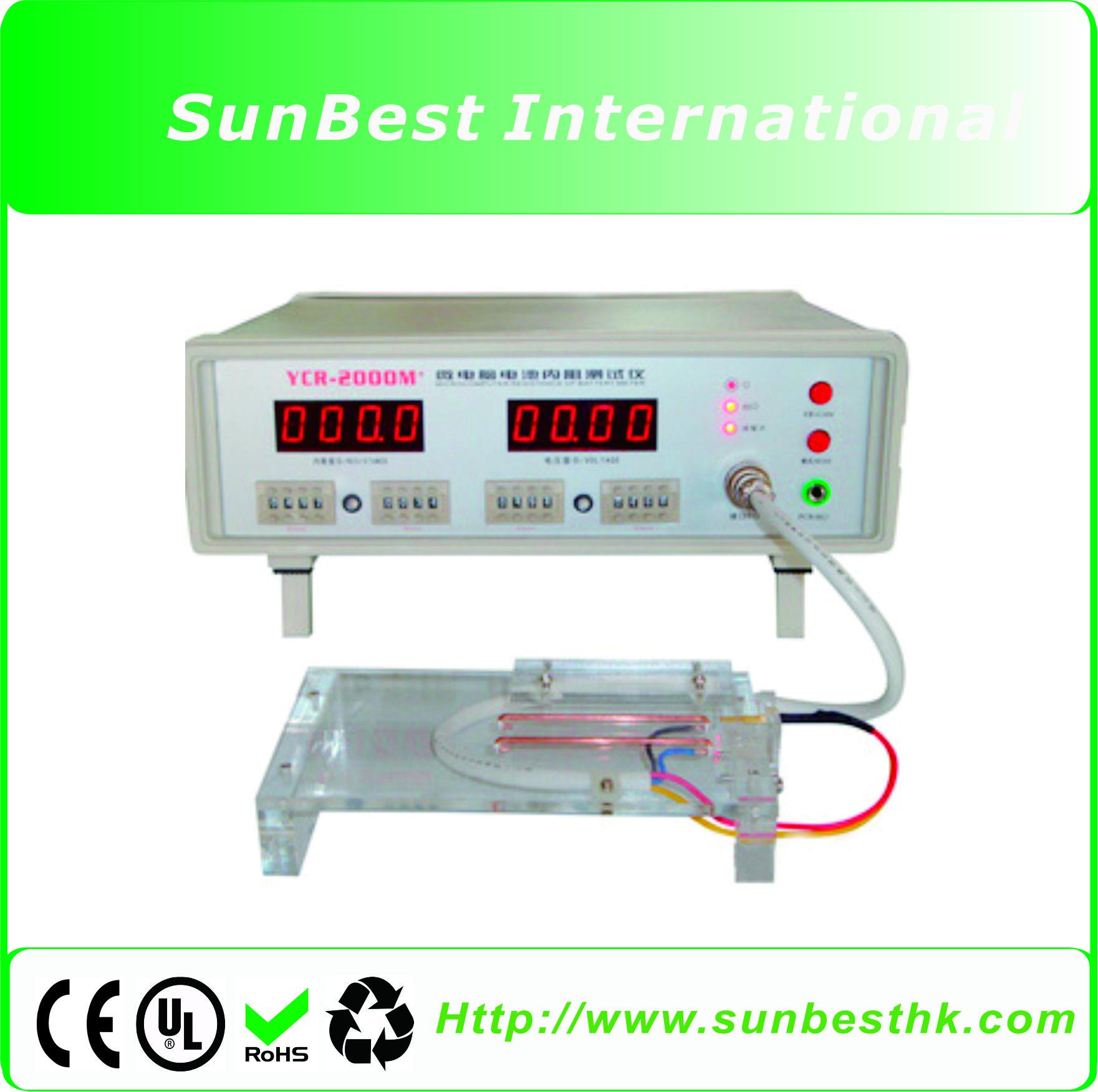

Aluminum-Cell-Tester
Aluminum-Cell-Tester

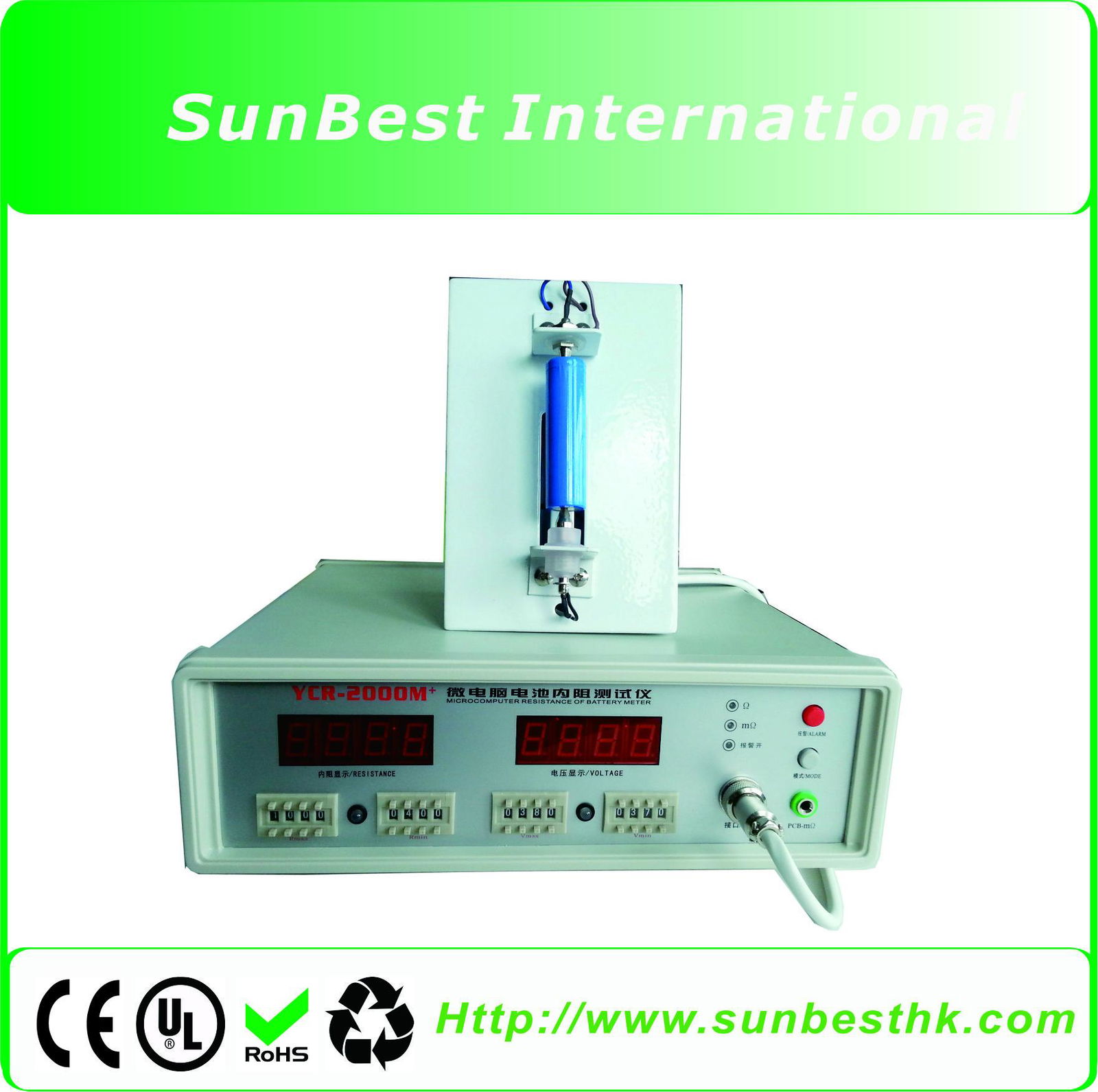

18650-Cell-Resistance-Tester
18650-Cell-Resistance-Tester

Steel-Cell-Resistance-Tester
Steel-Cell-Resistance-Tester

Cylinder-Battery-Voltage-Tester
Cylinder-Battery-Voltage-Tester

Cylinder-Battery-Resistance
Cylinder-Battery-Resistance
