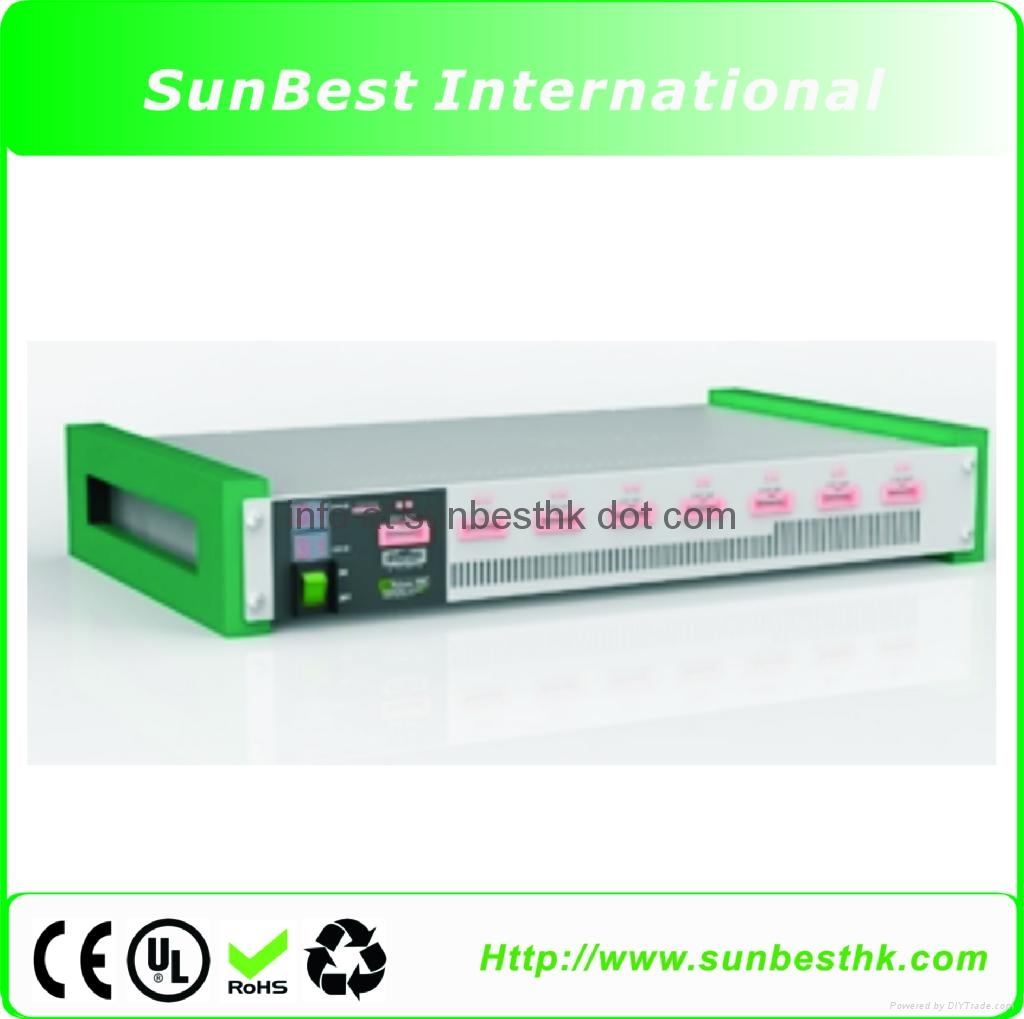

Smart Battery Test System CTS-5V5A-GGS For Digital Camera Battery

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
  • Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
  • Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
  • Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
  • Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
  • Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Model No.︰CTS-5V5A-GGS
Brand Name︰BEST
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pcs
Share on:

 Total 19 Related Items
Prev45678Next

Product Description

Apply to test digital camera battery and Backup batteries .

Feature:
1. Testing the battery pack by completely charging and discharging,
 find out the existed and potential quality problem of the batteries.
2. Test the battery pack’s real capacity accurately; distinguish whether
 the real capacity is consistent with the design capacity.
3. Circle Life Test Control and the battery information management
of the sales procedure.
4. Available to test the 4-pole common battery packs。Under the
4-pole mode, the output range of the constant voltage can be
continuous and adjustable.
5. Each channel on the device is totally separately controlled which
got the separate programmable constant voltage source& constant
 current source.
6. Each channel is functioned to fulfill CCCV constant charging, CC
constant current charging, CV constant voltage discharging, CD
constant current discharging, CP constant power discharging, still.
7. It available to test the MH-Ni and Li-ion packs.
8. 24 hours working capability under the normal temperature,
possessed with the power-off data record protection and auto
recovery back to the previous step.
9. The software is managed by the resigned person. On the
contrary, other operational involved person is restrained.

Specification:
1.Module:CTS-5V5A
2.Current testing precision: 0.1%FD+0.1%RD
3.Voltage testing precision: 0.1%FD+0.1%RD
4.Channel control: Totally Separate
5.Current output range:0.05-5A
6.Testing range:0.02A-5A
7.Precision :1mA
8.Voltage output range:0.5-5V
9.Testing range:0.5V-5V
10.Precision:1mV

Price Terms︰FOB HONG KONG
Payment Terms︰TT IN ADVANCE
Packing︰EXPORT WOODEN BOX
Lead Time︰7 DAYS AFTER PAYMENT
Product Image

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery

Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
Smart-Battery-Test-System-5V5A-For-Digital-Camera-Battery
