Battery Management System (BMS) 44.4V 12S Li-ion and Li-Polymer Battery

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
  • Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
  • Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
  • Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
  • Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
  • Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Model No.︰44.4V 12S Packs
Brand Name︰BEST
Country of Origin︰China
Unit Price︰-
Minimum Order︰1000 pcs
Share on:

 Total 29 Related Items
Prev45678Next

Product Description

Features:
Programmable BMS with SMBus , I2C/HDQ Communication protocol
1.Protection Circuit Board for 12S 44.4V  Li-ion and Li-Polymer battery pack;
2.PCB applies for 12 configuration  Li-ion and Li-Polymer battery pack;
3.To prevent the battery packs from overcharge,overdischarge,over current, over temperature ,short circuit;
4.With cell balance/equilibrium function;
5.Compatible with all the  Li-ion and LiPolymer cells;
6.How balancing function works? After battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have longer service life.
7.This BMS is designed for 3S ~ 96S Battery packs, can be used on Li-ion, Li-Polymer, LiFePO4, with max. Continuous discharge and charge current @ 200A, and it is integrated with SMBUS, I2C, HDQ optional communications protocol for battery pack monitoring, fuel/gas gauge management, communicating with your applications, can accurately read your battery pack’s SOC and SOH information. The communicatiuon function is removeable, can remove it if there is no need.
8.BEST series is designed as high current BMS, can carry 200A continuously, the built-in electric fan will cool down the heating from BMS automatically during working. It is designed as charging and discharging at the same / different terminal, contact us for different terminal (cost effective) if needed.
9.
BEST series BMS mainly designed based on SEIKO and TI chips , the SMBus/Fuel Gauge is based on TI BQ34Z100, the specified parameters as reference as below.
(Note: the pictures or parameters in this data sheet are only for your reference, those possibly could be different from the ones you will order. Due to the upgrading of the Hardware/Firmware/Software,Characteristics subject to change without notice, for more information, please contact our technical engineers by email: tech@sunbesthk.com

 Specifications:


Item

Contents

Criteria

(Adjustable)

1

Model

BEST-####

12S

2

Voltage

Charging voltage

50.4V

3

Current

Maximal continuous charging current

200A (adjustable)

Maximal continuous discharging current

200A (adjustable)

Current consumption

≤200μA



4

Overcharge Protection

Over charge detection voltage

Adjustable(depends on battery type)

Over charge detection delay time

Adjustable(depends on battery type)

Over charge release voltage

Adjustable(depends on battery type)

5

Over Discharge Protection

Over discharge detection voltage

Adjustable(depends on battery type)

Over discharge detection delay time

Adjustable(depends on battery type)

Over discharge release voltage

Adjustable(depends on battery type)

6

Over Current Protection

Over current detection voltage

Adjustable(depends on battery type)

Over current detection current

Adjustable(depends on battery type)

Detection delay time

Adjustable(depends on battery type)

Release condition

Adjustable(depends on battery type)

7

Short Circuit Protection

Detection condition

Adjustable(depends on battery type)

Detection delay time

Adjustable(depends on battery type)

Release condition

Cut load, automatically recover

8

Balance/Equilibrium

Balance voltage for single cell

Adjustable(depends on battery type)

Balance current for single cell

Adjustable(depends on battery type)

9

Balancing ON/OFF

When the balancing LEDs are on then the balancing function will get started

10

Temperature

Operating temperature range

-40~+85°C

Storage temperature range

-20~ +125°C

11

Capacity Display

Press Battery Capacity checking Switch to dispaly capacity by LEDs

12

Size  (L*W*T)

L214.5mm*W143mm*T37mm

Price Terms︰FOB SHENZHEN
Payment Terms︰TT/PAYPAL/WEST UNION/ESCROW
Packing︰EXPORT CARTON BOX
Lead Time︰7 BUSINESS DAYS AFTER RECEIVE YOUR PAYMENT
Product Image

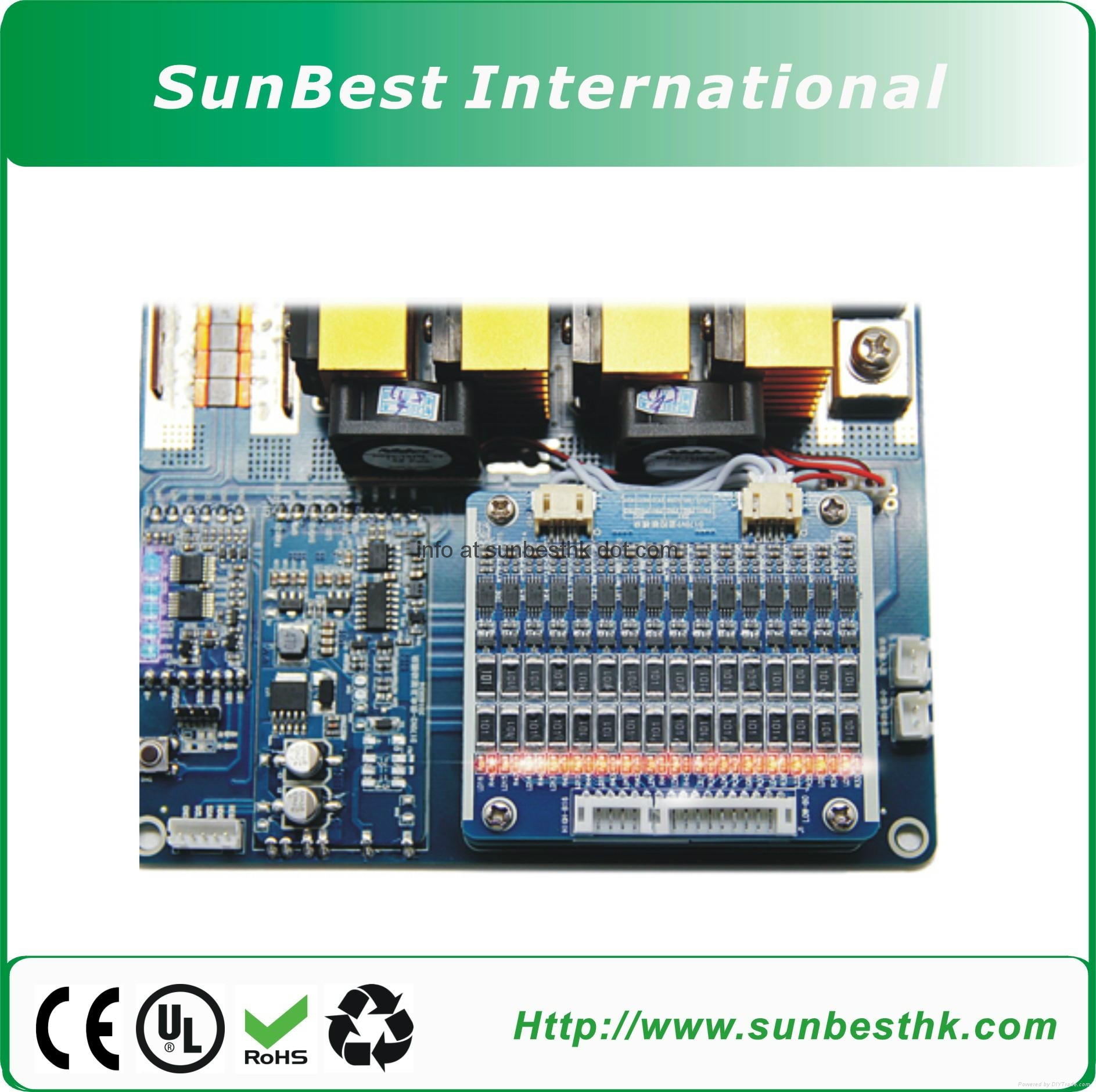

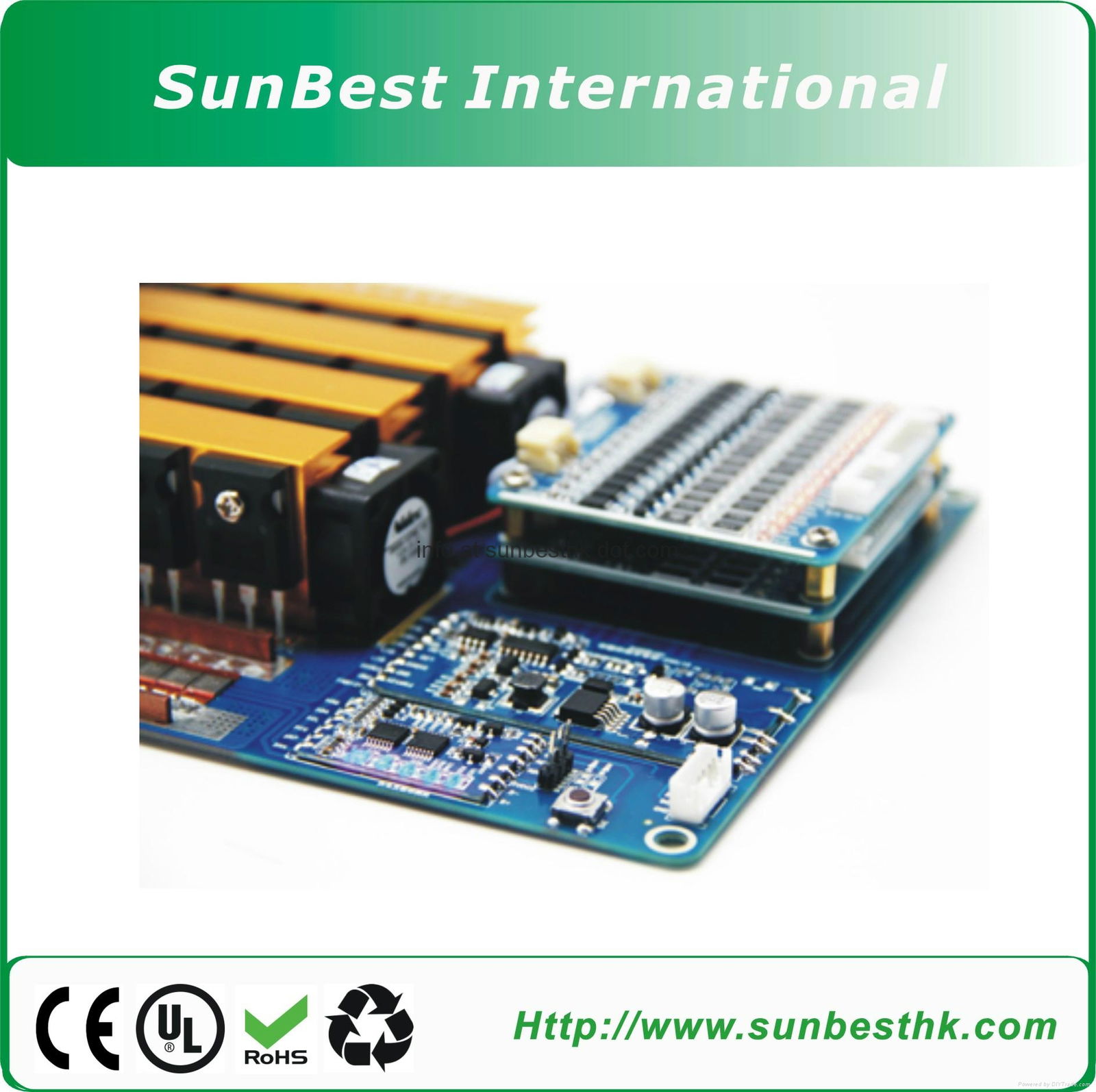

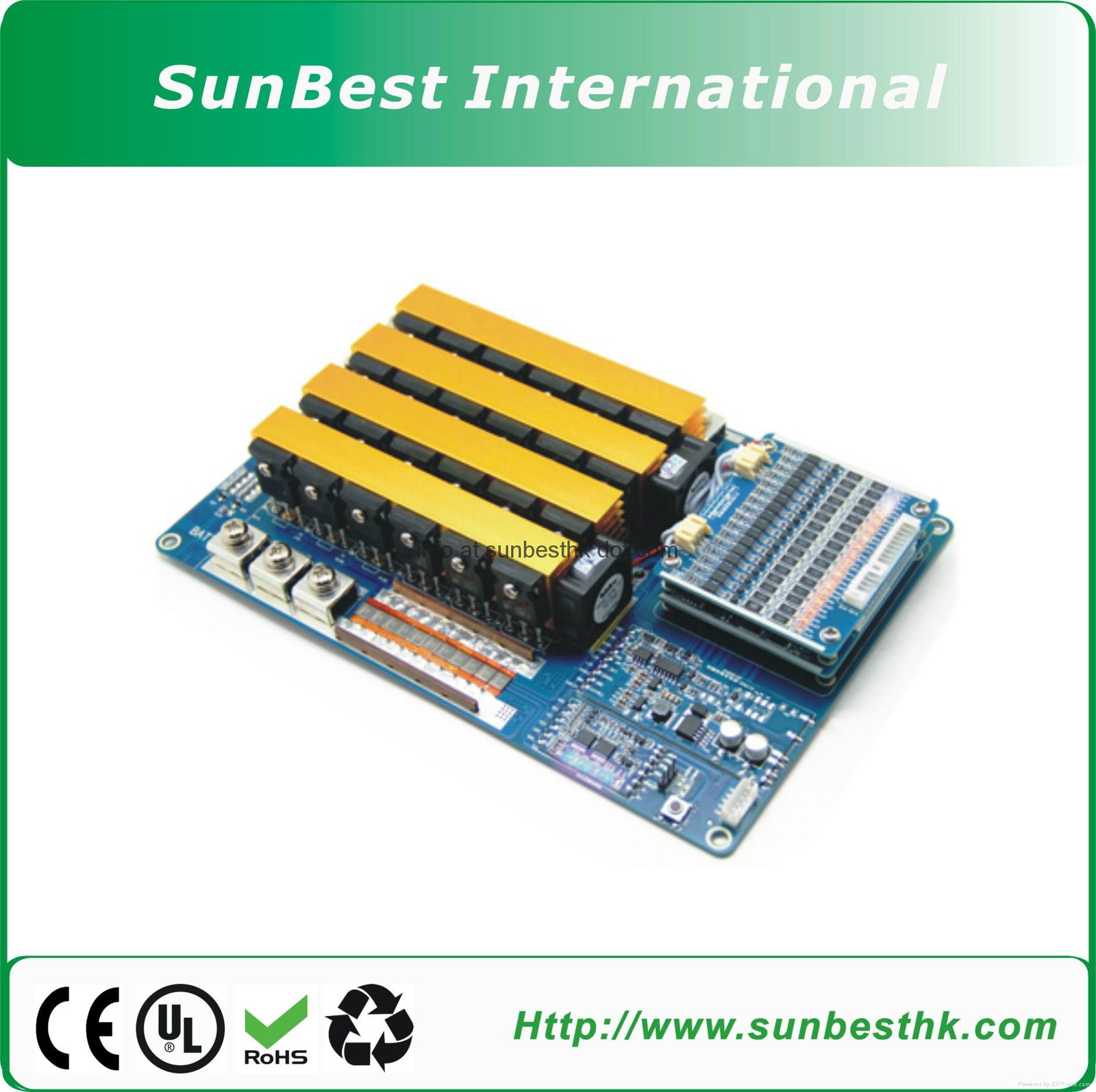

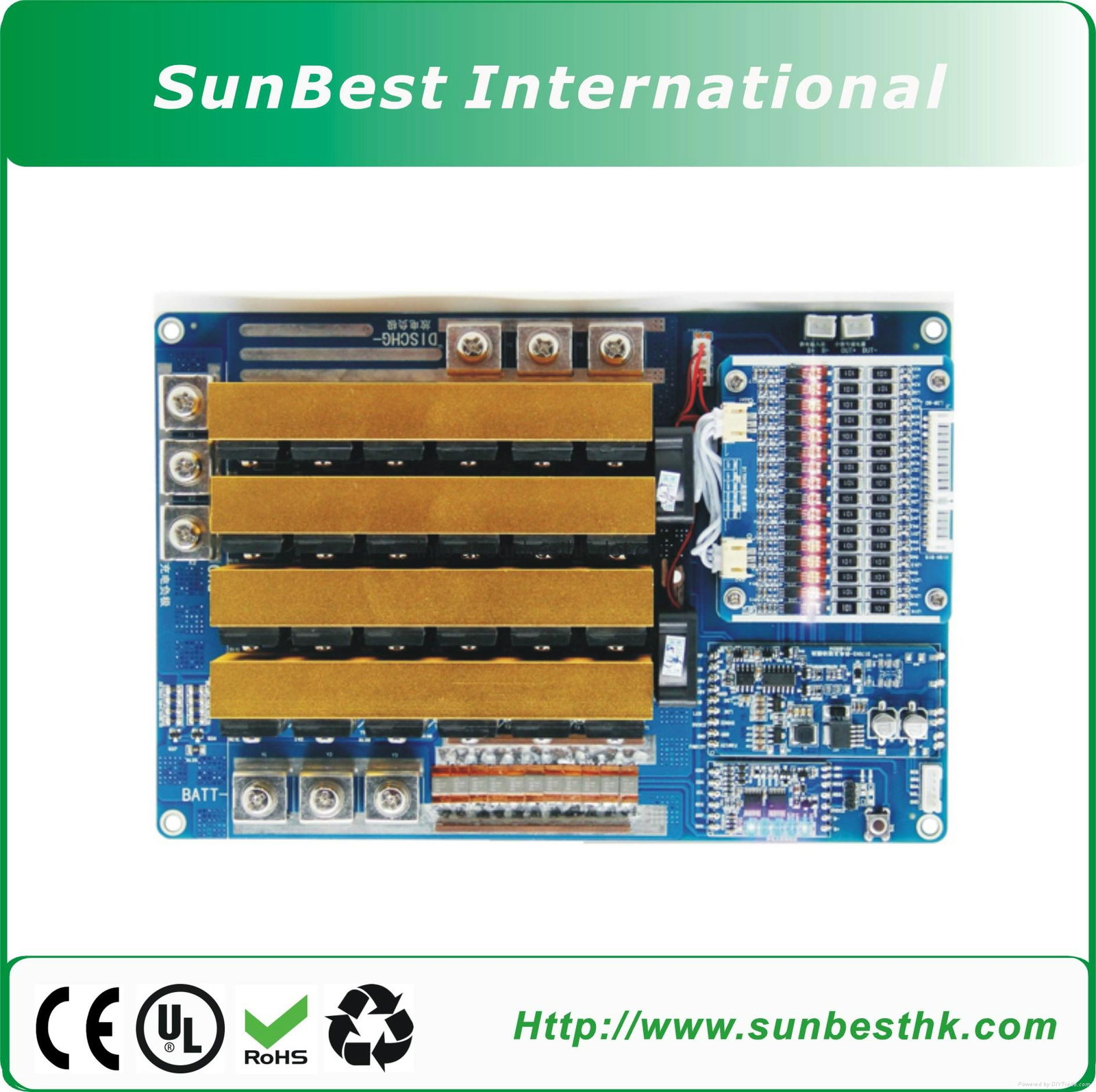

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery

Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
Battery-Management-System(BMS) 44.4V-12S-Li-ion-Li-Polymer-Battery
