Automatic Numerical Control Cylinder 18650 Cell Battery Spot Welding Machine

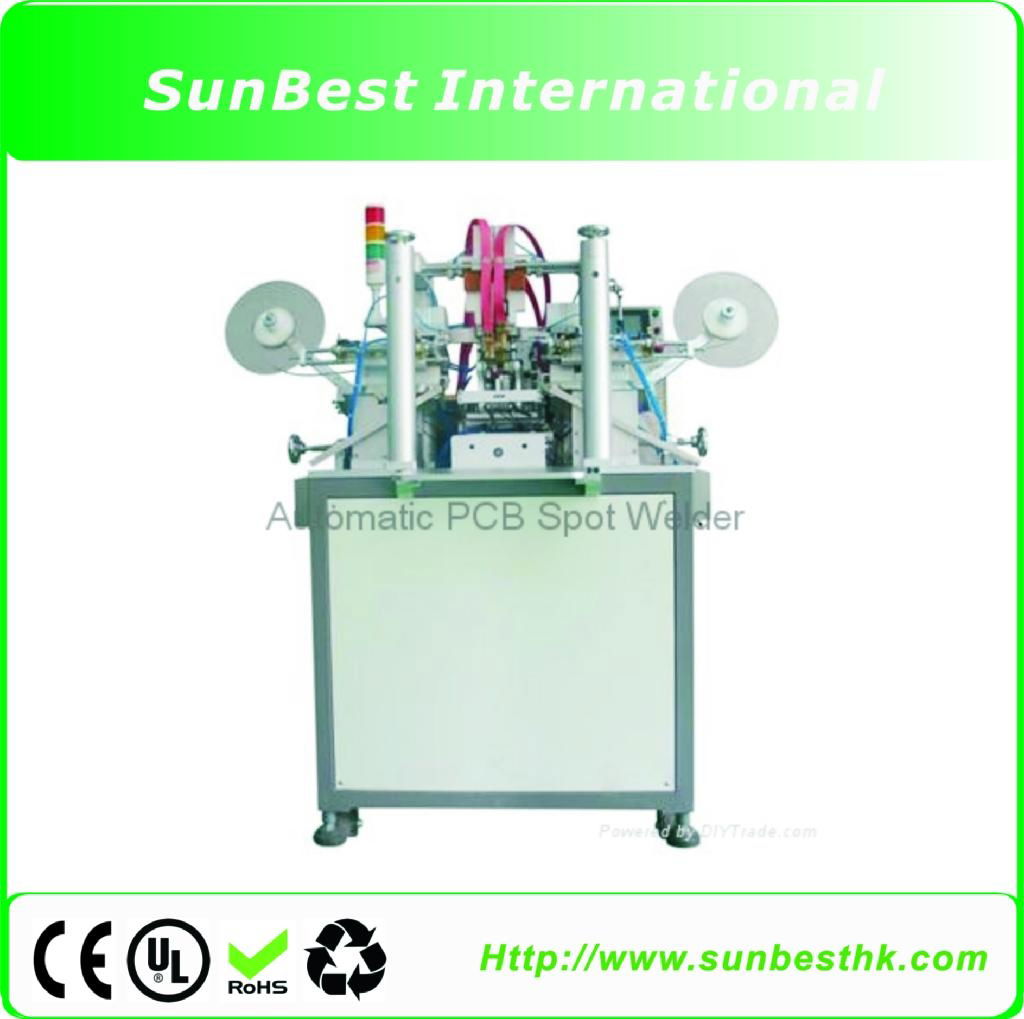

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
  • Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
  • Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
  • Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
  • Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
  • Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Model No.︰BSW-88
Brand Name︰BEST
Country of Origin︰China
Unit Price︰US $ 13000 / pcs
Minimum Order︰1 pcs
Share on:

 Total 24 Related Items
Prev12345Next
Auto next page:   SecondsPlay

Product Description

Feature:
This Battery Spot Welder is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current

Parameter:

1.Dimension of device: 900mm (Length) * 1300mm (Width) * 1800mm (height);
2.Weight of device: 400 Kg;
3.Component of device: 2 battery pack spot-welder handpiece, 2 power sources (one piece on the left side and one on right side);
4.Modes of spot welding: salient-point spot welding and sharp-point spot welding;
5.Power supply of device: AC220V/50Hz;
6.
Air supply0.3 ~ 0.4Mpa
7.Y-axis travel:500mm
8. Z-axis travel:350mm
9.Spot welding speed:0.3s / point; 5000pcs / h
10.Maximum speed of motor drive:1000mm/s
11.The maximum number of batteries loaded:300pcs (standard 18650 lithium battery)
12.Number of groups for storing fills:999 groups
13.Operating system:Embedded system + man-machine screen
14.Transmission:Stepper + imported precision linear guide (optional servo + screw)

15.Built-in spot-welding timing, function of resuming from break point;
16.Yield count and alarm prompting of electrode usage limit;
17.Store multiple groups of spot-welding recipes; support the connection with PC machine;
18.Rotating function of Handpiece;

Warning

· Avoid touching weld spots immediately after the weld has been performed as they will be hot.
· Always wear safety glasses when working with spot welders and weld heads.
· Be careful not to pinch fingers in moving weld head parts or between welding electrodes.
· Remove hand jewelry before welding.



Price Terms︰FOB SHENZHEN
Payment Terms︰TT IN ADVANCE
Packing︰EXPORT WOODEN BOX
Lead Time︰1O DAYS AFTER RECEIVE PAYMENT
Product Image

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB

Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
Automatic-Spot-Welder-For-L-Type-Nickel-Tabs-Weld-To-PCB
