Laptop Battery Protect Board(PCB)

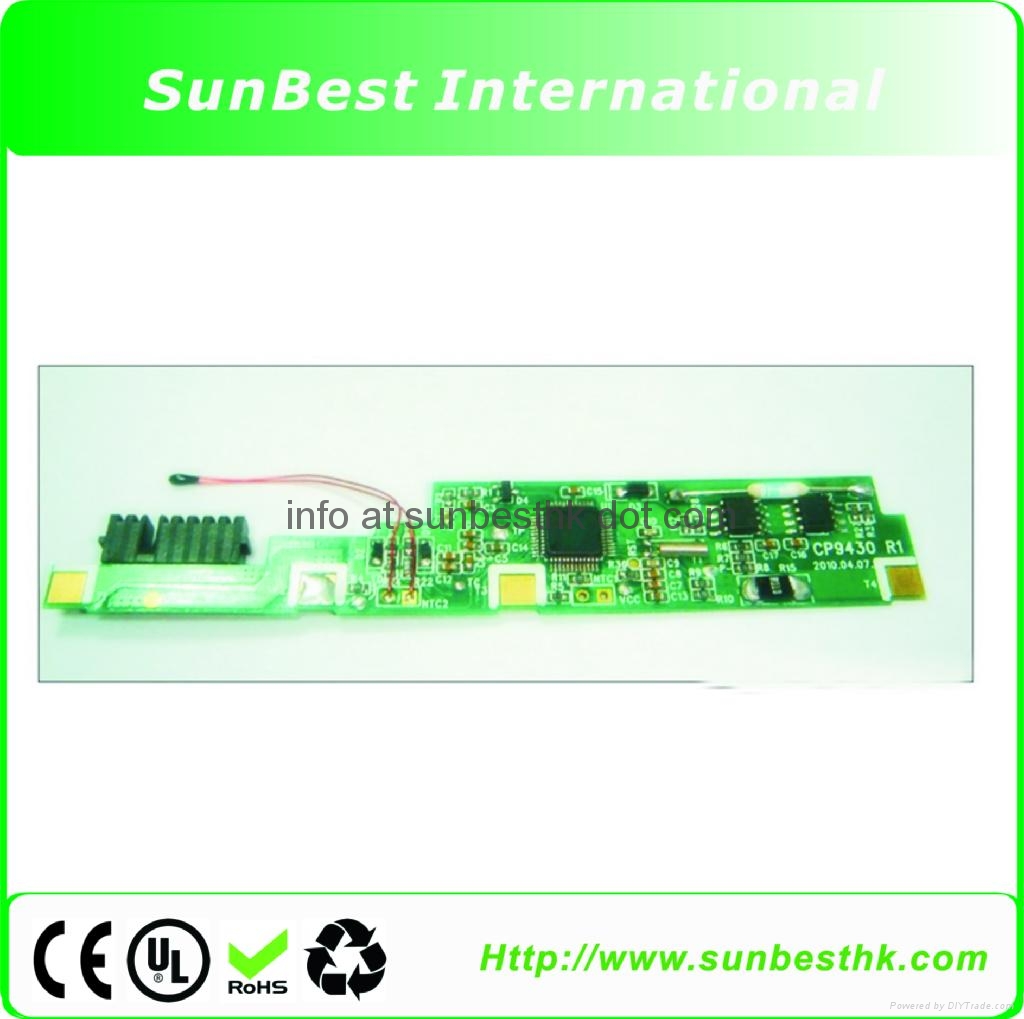

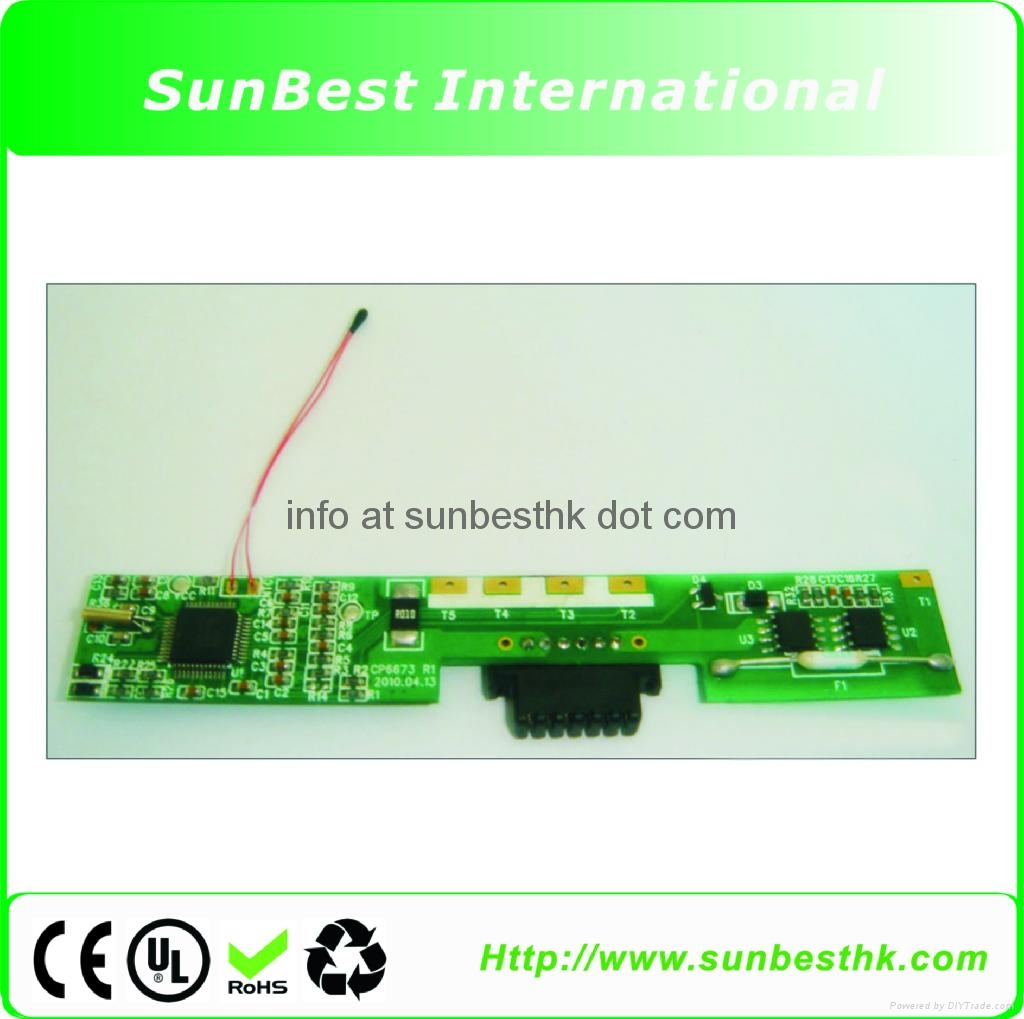

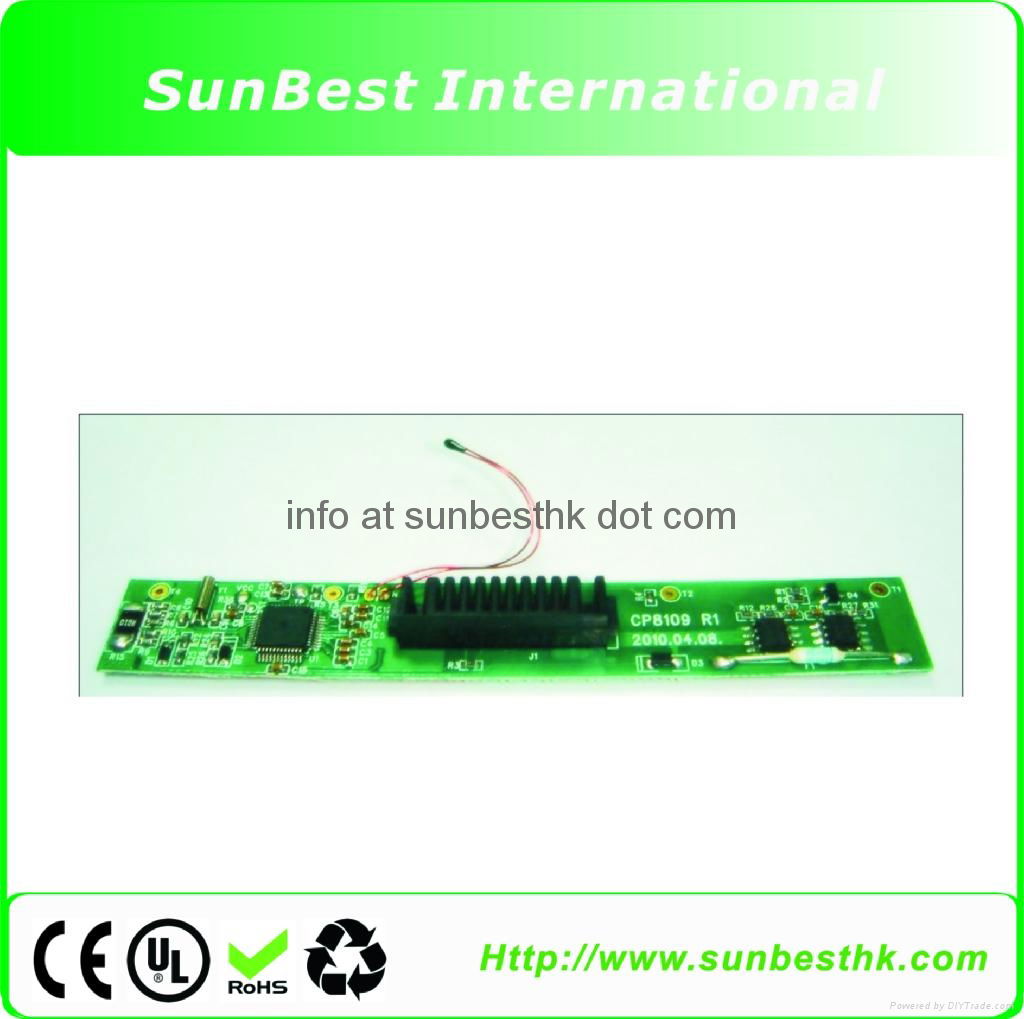

Laptop-Battery-Protect-Board-PCB
  • Laptop-Battery-Protect-Board-PCB
  • Laptop-Battery-Protect-Board-PCB
  • Laptop-Battery-Protect-Board-PCB
  • Laptop-Battery-Protect-Board-PCB
  • Laptop-Battery-Protect-Board-PCB
Model No.︰IBM/ACER/ASUS
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 6.5 / pc
Minimum Order︰100 pc
Share on:

 Total 29 Related Items
Prev2021222324Next

Product Description

 Features and Benefits

*Note:Characteristics subject to change without notice.

*Software Protection including:
1.Over Charge Voltage Protection;
2.Over Charge Current Protection;
3.Over Discharge Voltage Protection;
4.Over Discharge Current Protection;
5.Charge Over Temperature protection;
6.Discharge Over Temperature protection;

* Voltage/Temperature Calibration:
During operation after calibration, The difference for Battery Pack's voltage must<±40mv;
The difference for single cell's voltage must<±20mv,
the difference for the Temperature must<±1°C;

*Current Calibration:During operation after calibration the difference for the current must<±30mA(2A discharge)��usually within±10mA.

Specifications

Item

Contents

Remark

1

Model

HCX-B020

2

Apply for (Battery Cell)

3S Li-ion/ Li-Polymer

3

Main IC

BQ20Z70

4

Communication Interface

SMBUS

5

Working Current

4A

Adjustable

6



Design Voltage

11.1V

Adjustable

7



Design Capacity

800-20000mAh

Adjustable

8

COV Threshold

4.28V

Adjustable

9

COV Recovery

4.15V

Adjustable

10

CUV Threshold

2.6

Adjustable

11

CUV Recovery

3.0

Adjustable

12

OC (1st Tier) Charge

5A

Adjustable

13

OC (1st Tier) Discharge

6A

Adjustable

14

Over Temp Charge

55

Adjustable

15

OT Chg Recovery

50

Adjustable

16

Over Temp Discharge

60

Adjustable

17

OT Discharge Recovery

55

Adjustable

Price Terms︰FOB SHENZHEN
Payment Terms︰TT/PAYPAL/WEST UNION/ESCROW
Packing︰EXPORT CARTON BOX
Lead Time︰7 BUSINESS DAYS AFTER RECEIVE YOUR PAYMENT
Product Image

Laptop-Battery-Protect-Board-PCB
Laptop-Battery-Protect-Board-PCB

Laptop-Battery-Protect-Board-PCB
Laptop-Battery-Protect-Board-PCB

Laptop-Battery-Protect-Board-PCB
Laptop-Battery-Protect-Board-PCB

Laptop-Battery-Protect-Board-PCB
Laptop-Battery-Protect-Board-PCB

Laptop-Battery-Protect-Board-PCB
Laptop-Battery-Protect-Board-PCB
