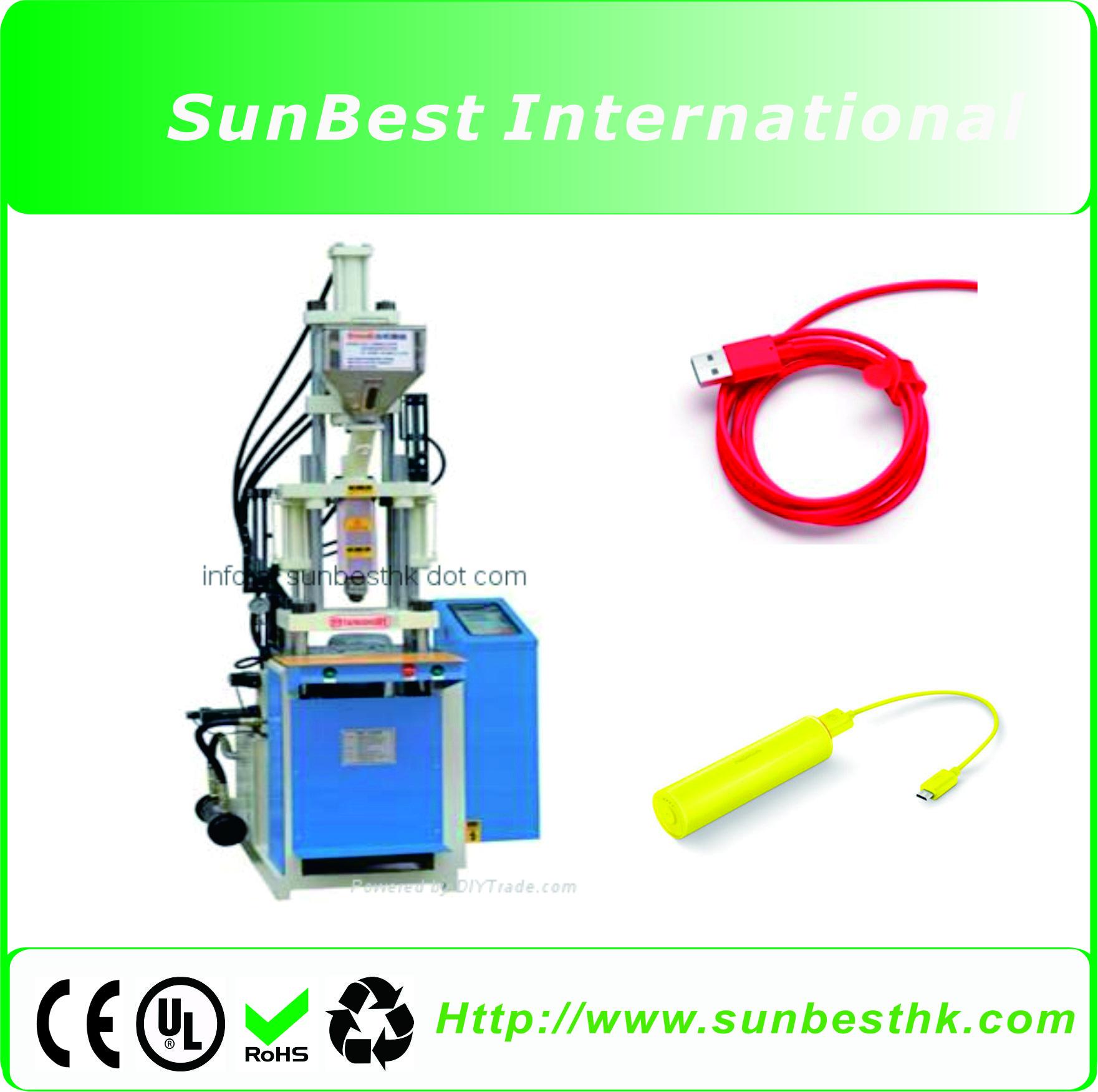

High pressure vertical injection machine for USB/Charger pin

USB-cable-Injection-Machine
Model No.︰TW-20T
Brand Name︰BEST
Country of Origin︰China
Unit Price︰US $ 6500 / pcs
Minimum Order︰1 pcs
Share on:

 Total 4 Related Items
Prev1234Next

Product Description
Feature:
1. Vertical mold, vertical injection, suitable for insert molding.
2.  Nitriding steel screw, feed tube, high torque hydraulic motor drive, multi section injection pressure, plasticizing performance.
3. Straight heavy duty locking cylinder design, quick mold closing, low-pressure safety lock mould, abnormal automatic die sinking, multiple.
Pressure control, high safety, improve the mould life.
4. Electrical protection devices, without misoperation occurs, maintain the safety of operatingpersonnel.
5. Automatic fault display, easy and quick repair.
6. Electronic control, hydraulic with brand-name parts, precision, durable, quiet.
7.  Multi section temperature control, multiple injection pressure, injection speed, back pressure stepless adjustment, suitable for precision plastic parts molding.

8.  Hydraulic push out device.

Main parameter:
  Parameter  Unit Model:TW-20T
INJECTION UNIT Screw Diameter   mm 22
Injection Capacity  kgf/c㎡ 1625
Injection Capacity cm³ 34
Injection Weight(P.S) gr 39
oz 1.4
Injection Rate cc/s 28
Screw Speed r.p.m 0~150
Screw Stroke mm 90
Nozzle Stroke mm 120
Nozzle Contact Force tf 2.4
CLAMPING Clamping System  …… Hydraulic
Clamping Force tf 18
Clamping Stroke mm 200
 Max.Mould Space mm 240
Min.Mould Height mm 40
Overall Size Of Platens(HXV) mm 420x250
Space Between Columns(HXV) mm 310x130
Space Between Columns (HXV) tf 0.7
Hydraulic Ejector Force mm 28
ELECTRICAL EQUIPMENT&CENERAL Drive Motor kw 3.7(5HP)
Heater kw 2.0
Dimension ( L X W X H) 1.2x0.9x2.5
Weihgt kg 650
Shipping Size(L X W X H) m 1.4x1.1x2.25
Shipping Weight kg 800
Oil Tank Capacity   90
Cooling Water l/hr 400~600







Price Terms︰FOB SHENZHEN
Payment Terms︰TT IN ADVANCE
Packing︰EXPORT WOODEN BOX
Lead Time︰15 DAYS AFTER DEPOSIT
