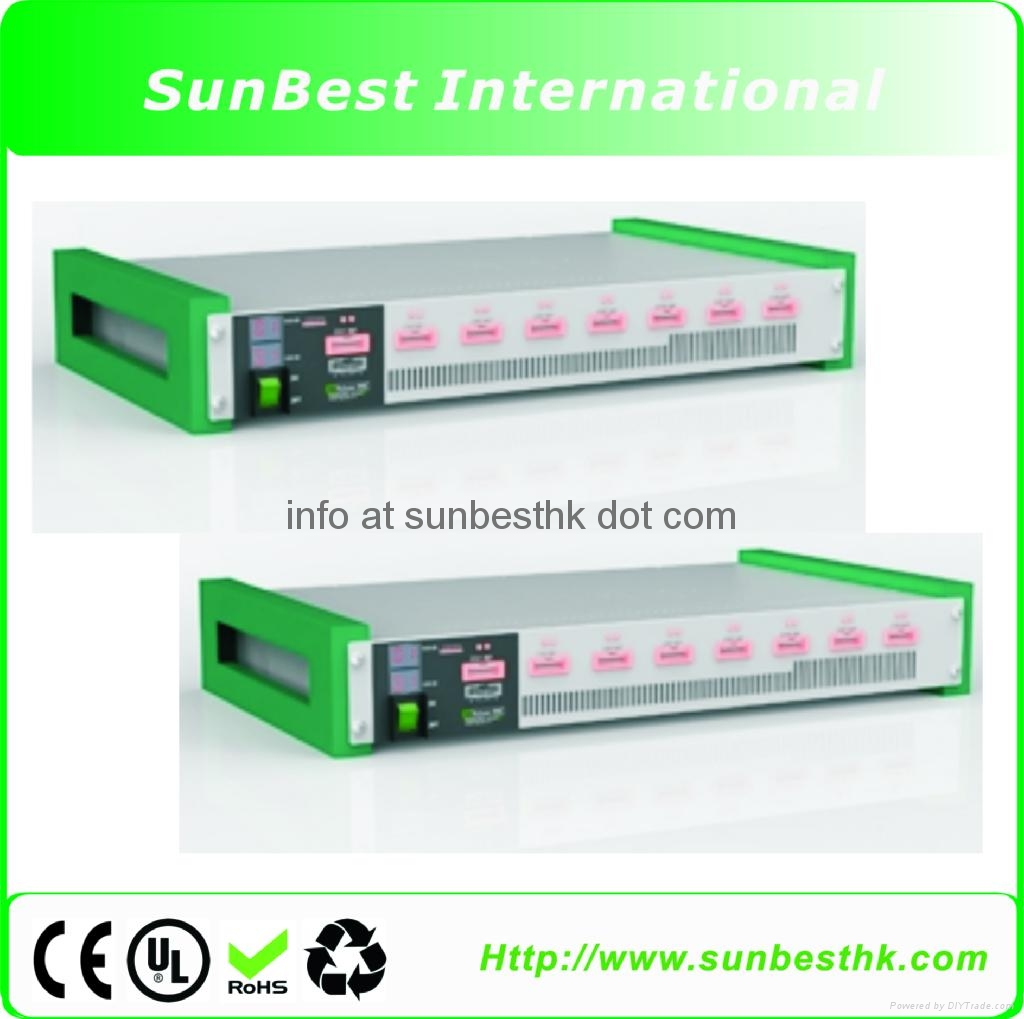

Apply to test Backup batteries and digital camera battery.
Feature:
1. Testing the battery pack by completely charging and discharging,
find out the existed and potential quality problem of the batteries.
2. Test the battery pack’s real capacity accurately; distinguish whether
the real capacity is consistent with the design capacity.
3. Circle Life Test Control and the battery information management
of the sales procedure.
4. Available to test the 4-pole common battery packs。Under the
4-pole mode, the output range of the constant voltage can be
continuous and adjustable.
5. Each channel on the device is totally separately controlled which
got the separate programmable constant voltage source& constant
current source.
6. Each channel is functioned to fulfill CCCV constant charging, CC
constant current charging, CV constant voltage discharging, CD
constant current discharging, CP constant power discharging, still.
7. It available to test the MH-Ni and Li-ion packs.
8. 24 hours working capability under the normal temperature,
possessed with the power-off data record protection and auto
recovery back to the previous step.
9. The software is managed by the resigned person. On the
contrary, other operational involved person is restrained.
Specification:
1.Module：CTS-5V10A
2.Current testing precision： 0.1%FD+0.1%RD
3.Voltage testing precision： 0.1%FD+0.1%RD
4.Channel control： Totally Separate
5.Current output range：0.05-10A
6.Testing range：0.02A-10A
7.Precision ：1mA
8.Voltage output range：0.5-5V
9.Testing range：0.5V-5V
10.Precision：1mV
|
