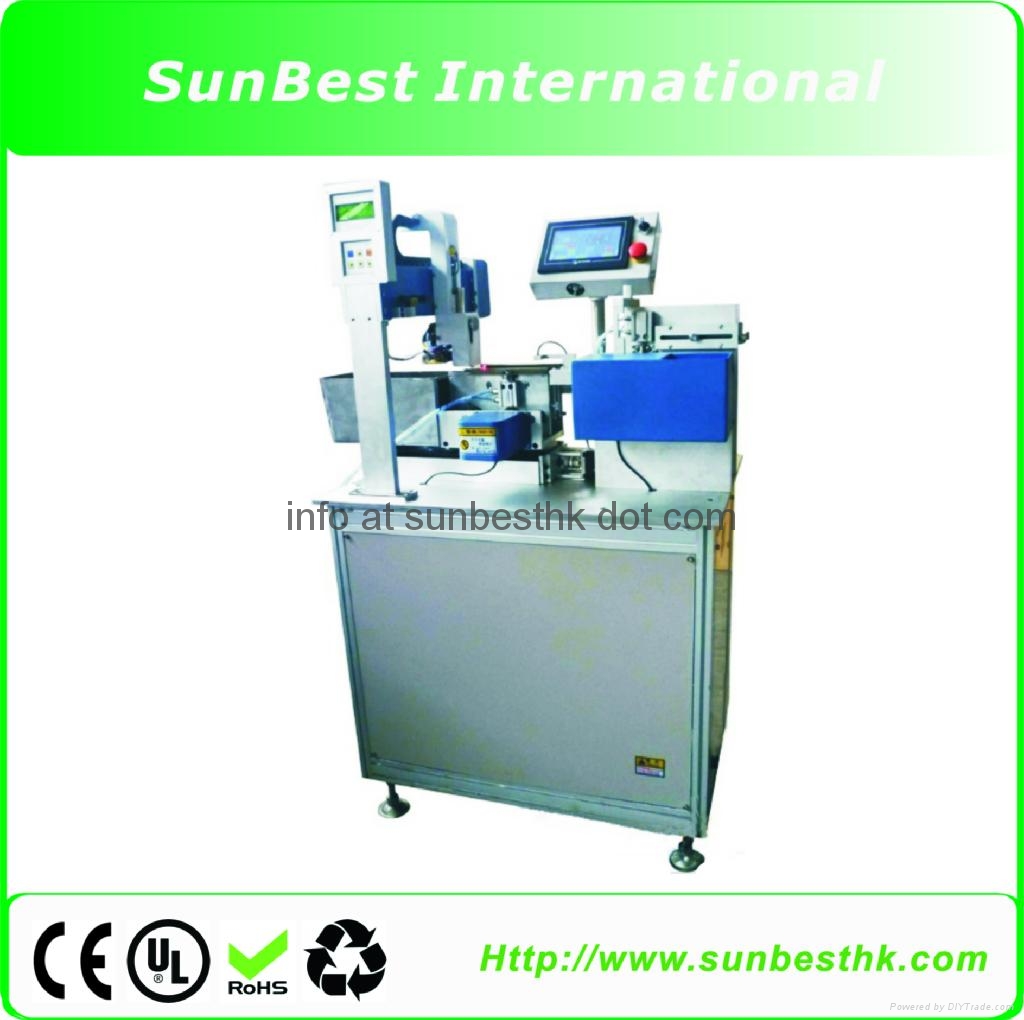

Automatic PCB Test Machine APTS-2008 For Mobile Battery Protection Board Test

Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
  • Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
  • Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
  • Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
  • Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
  • Automatic-PCB-Test-Machine-BSW-108-For-Mobile-Battery-Protection-Board-Test
Model No.︰APTS-2008
Brand Name︰SUN BEST
Country of Origin︰China
Unit Price︰US $ 5000 / pcs
Minimum Order︰1 pcs
Share on:

 Total 20 Related Items
Prev678910Next

Product Description

Feature:
Automatic Battery protection board test machine specializing in the design and development
of a fully automated test equipment, using the man-machine interface, high degree of
automation, easy operation, no need to replace fixtures, to respond to different types of protective plate test requirements.

Parameter:
1.Overcharge protection voltage test range: 3.900 ~ 4.500V, the highest resolution 1mV.
2.Over-discharge protection voltage test range: 2.000 ~ 3.000V, the highest resolution 1mV.
3. Over current trip current test range: 0.000 ~ 9.999A, the highest resolution 25mA.
4.Four-power current test range: 0.01 ~ 100uA, the highest resolution 0.1uA.
5. Internal Resistance test range: 0 ~ 200mΩ, the highest resolution 0.1 mΩ.
6. Identifying resistance test accuracy: 1%, the highest resolution 10Ω.
7.Overcharge recovery voltage: 3.800 ~ 4.400V, the highest resolution 1mV.
8. Over-discharge recovery voltage: 2.000 ~ 3.000V, the highest resolution 1mV.
9.Over current complex recovery type judgment: Open recovery or charge recovery.
10.Overcharge protection action delay time: 0.000 ~ 9.999S, Resolution 1mS.
11. Over-discharge protection action delay time: 000 ~ 999mS, Resolution 1mS.
12. Over current action delay time: 000 ~ 99.9mS, Resolution 0.1mS.
13. 0V charging function judge: no or yes.
14.Low-power mode power consumption: 0.00 ~ ~ 9.99uA, resolution 0.01 uA.
15.Independent charging voltage feedback circuit test range: 4.00 ~ 4.50V, resolution 1mV.
16.Vibration test drive capability optionally: 4mA, 0.4mA, 0.04mA.
17.Chip test: Can you identify the DS2502 interface is compatible with a variety of chips



Price Terms︰FOB Hong Kong
Payment Terms︰TT IN ADVANCE
Packing︰EXPORT WOODEN BOX
Lead Time︰1O DAYS AFTER RECEIVE PAYMENT
