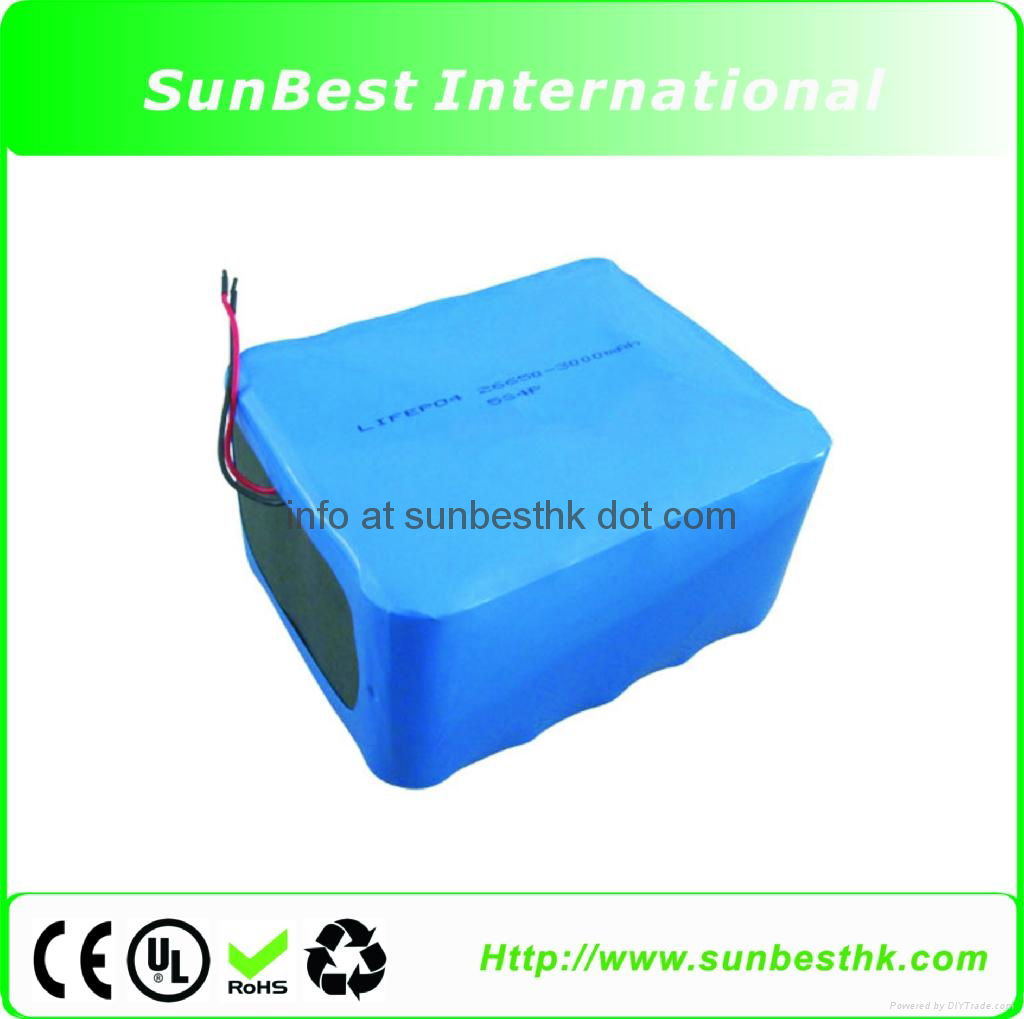

Model: LiFePO4 26650
1. Typical Capacity: 12Ah
2. Minimum Capacity: 11.7Ah
3. Voltage: Nominal voltage: 3.2 V; Charging limited voltage: 18.25V
4. Mix work current: ≤ 8A
5. Life cycle: 1200times
6. Wire: AWG22 / UL1007
7. Pack dimension: 135*108*75mm
8. Weight: 1.7kg
9. Operation Temperature Range: Charging at 0~45º C; Discharging at -10~+60º C
10. Protection: Over charge voltage: 3.9± 0.025V each cell; Over discharging voltage: 2.0± 0.05V each cell; Battery pack over discharge voltage: 9.75~12.8V; Max discharge current: 30± 5A; Short protect available.
LiFePO4 battery has distinguished advantages of long cycle life, inherent safety, fast charging, high discharging current. It is an emerging new power technology and widely adopted into power tools, and electrical bikes and cars.
