CR Series Li/MnO2 Button Cell

CR-Series-Li/MnO2-Button-Cell
  • CR-Series-Li/MnO2-Button-Cell
  • CR-Series-Li/MnO2-Button-Cell
  • CR-Series-Li/MnO2-Button-Cell
  • CR-Series-Li/MnO2-Button-Cell
  • CR-Series-Li/MnO2-Button-Cell
Model No.︰CR2025/2032
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 0.2 / pcs
Minimum Order︰1000 pcs
Share on:

 Total 22 Related Items
Prev1819202122Next

Product Description

 It adopts the advance technology and made in Japan raw material for its Lithium manganese dioxide button cells, which is over 95%

capacity but only one third price compared with Panasonic button cell.

     Lithium manganese dioxide batteries have a lightest metallic
 lithium anode and a solid manganese dioxide cathode,
 immersed in a non-corrosive, non toxic organic electrolyte.

Discharge action:

Negative: Li→Li+ +e-

Positive: :Mn+4O2+ Li+ +e- → Mn+3O2(Li+)

Between positive and Negative : Mn+4O2+ Li → Mn+3O2(Li+)



Main Features:

1. High cell voltage, 3.00-3.40V on open-circuit voltage, and 3.0V operating voltage of above.

2. Wide operating temperature range from -40℃ to  +80℃under our special technology and ingredient.

 3. Nonmagnetic stainless steel case hermetically  sealed. Excellent leakage-proof.

 4. Excellent storage characteristics. Li/MnO2 cell  is less than 2% selfdischarge per year at 20℃, which can support up to 10 years storage with  minimum deterioration.

 5. Environmental Friendly.Li/MnO2 batteries contain  no polluting metals, such as cadmium,

 lead, mercury etc., or the contents of the polluting metals are within  the international standards.

   Model List:

Model No. Nominal Voltage

Nominal Capacity

Current

Max Dimensions(mm)

Weight

Standard Current

Continuous Current

Pulse Current

Diameter * Thickness

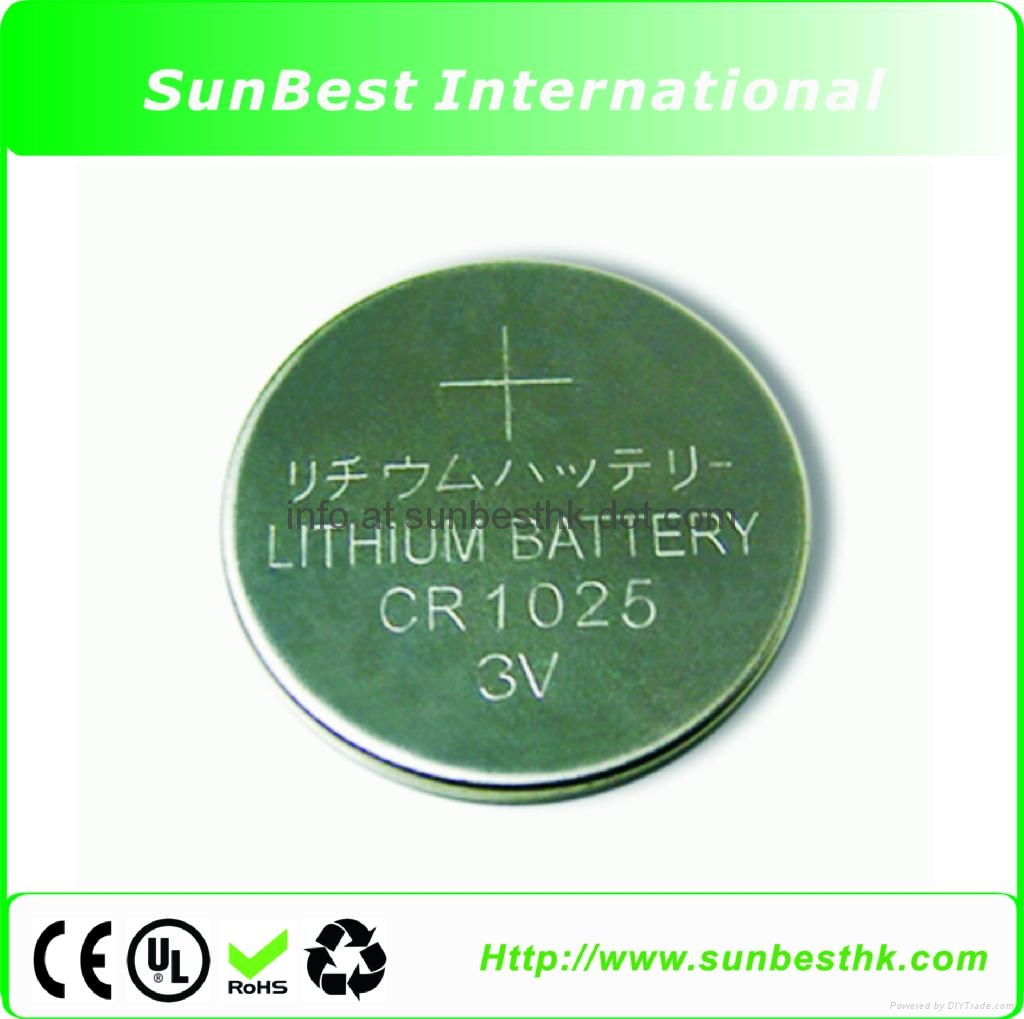

CR1025

3V

30mAh

0.1mA

1.0mA

5mA

10.0mm*2.5mm

0.6g

CR1216

3V

25mAh

0.1mA

1.0mA

5mA

12.5mm*1.6mm

0.7g

CR1220

3V

38mAh

0.1mA

1.0mA

5mA

12.5mm*2.0mm

0.8g

CR1225

3V

50mAh

0.1mA

1.0mA

5mA

12.5mm*2.5mm

0.9g

CR1616

3V

50mAh

0.1mA

1.0mA

10mA

16.0mm*1.6mm

1.1g

CR1620

3V

70mAh

0.1mA

1.0mA

10mA

16.0mm*2.0mm

1.2g

CR1632

3V

120mAh

0.1mA

1.0mA

15mA

16.0mm*3.2mm

1.8g

CR2016

3V

75mAh

0.1mA

1.0mA

15mA

20.0mm*1.6mm

1.7g

CR2025

3V

150mAh

0.2mA

2.0mA

20mA

20.0mm*2.5mm

2.5g

CR2032

3V

220mAh

0.2mA

2.0mA

20mA

20.0mm*3.2mm

3.0g

CR2320

3V

130mAh

0.2mA

2.0mA

20mA

23.0mm*2.0mm

2.7g

CR2325

3V

190mAh

0.2mA

2.0mA

20mA

23.0mm*2.5mm

3.2g

CR2330

3V

260mAh

0.2mA

2.0mA

20mA

23.0mm*3.0mm

3.7g

CR2335

3V

300mAh

0.2mA

3.0mA

20mA

23.0mm*3.5mm

4.2g

CR2354

3V

530mAh

0.2mA

3.0mA

20mA

23.0mm*5.4mm

6.3g

CR2430

3V

270mAh

0.2mA

3.0mA

20mA

24.5mm*3.0mm

4.3g

CR2450

3V

600mAh

0.4mA

3.0mA

20mA

24.5mm*5.0mm

5.8g

CR2477

3V

950mAh

0.4mA

3.0mA

20mA

24.5mm*7.7mm

9.9g

CR3032

3V

550mAh

0.4mA

3.0mA

20mA

30.0mm*3.2mm

6.8g







Price Terms︰FOB SHENZHEN
Payment Terms︰TT/Paypal/Westunion
Packing︰Carton box
Lead Time︰7 days after receive the payment
Product Image

CR-Series-Li/MnO2-Button-Cell
CR-Series-Li/MnO2-Button-Cell

CR-Series-Li/MnO2-Button-Cell
CR-Series-Li/MnO2-Button-Cell

CR-Series-Li/MnO2-Button-Cell
CR-Series-Li/MnO2-Button-Cell

CR-Series-Li/MnO2-Button-Cell
CR-Series-Li/MnO2-Button-Cell

CR-Series-Li/MnO2-Button-Cell
CR-Series-Li/MnO2-Button-Cell
