Low Pressure Injection Machine For Injection Mobile Battery Injection

Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery Injection
  • Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery Injection
  • Low-Pressure-Injection-Machine-Main-Control-Display
  • Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery-Injection
  • Low-Pressure-Injection-Machine-Mould
  • Low-Pressure-Injection-Machine-Mould
Model No.︰MCIM-116
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 4000 / pcs
Minimum Order︰1 pcs
Share on:

 Total 4 Related Items
Prev1234

Product Description

Product information:

1、Vertical injection type, equipped with hot-runner system without waste. Optimize the productive and cost saving.

2、Utilized PLC and HMI for user friendly.

3Independent one melting unit connected with heating tube to serve molten

adhesive precisely into the working station. This design is easy for maintenance.

4、Five Temperature control zones work independently.

5. Extreme safety light curtain to protect workers during the operation.

6. Wide range mold set fixture can fit different mold sets, ejector is equipped.

Application:

Automotive Electronics, Wire Hardness, Medical and Military standard water-tight connectors molding, LED lighting module molding, Sensors and micro-switch, RFID molding, Battery pack molding and PCB molding.
Product Parameter :

Working station O.D.(mm):950×950×1630

Melting Tank O.D.(mm):850×440×450

Installation Area(mm):Approx.1600×3100

Total Weight:200kg

Melting Tank Weight:80kg

Frame:Al.extrusion Chrome planted steel plate

Clamping Pillar & Linear:Hard chrome planting High precision linear

Injection control:Hot runner LPMS-HR 1X2 Nozzles

Injection Type:Single station with horizontal injection

Heating Hose:LPMS-J120 X 1 tube

Melting Tank:Isolated LPMS-6-1-8325

Adhesive Delivery:Gear Pump 8325

Input power:AC380V or AC220V

Temperature control Zones:6 Zones

Temperature Range:Room Temp. to Max 250℃

Temperature Accuracy:±1℃

Power:1.5 to 4.5kw

Air consumption:0.1m3/min

Clamping device:Pneumatic or Hybrid Pneumatic/Hydraulic

Clamping force:Pneumatic Cylinder 0-1.2T

Clamping stroke:150 mm

Control system:PLC+5.7"MHI

Mold set O.D. (Mm) :L300×W150×H150

Price Terms︰FOB SHENZHEN
Payment Terms︰TT/Paypal
Packing︰Wooden Box
Lead Time︰10 Days Later After Receive Payment
Product Image

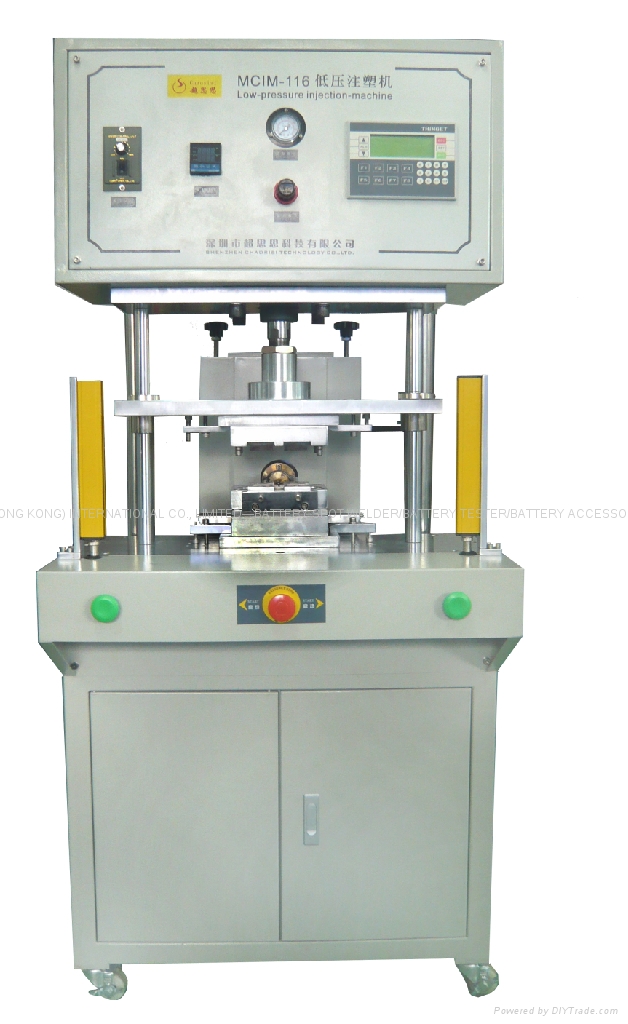

Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery Injection
Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery Injection

Low-Pressure-Injection-Machine-Main-Control-Display
Low-Pressure-Injection-Machine-Main-Control-Display

Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery-Injection
Low-Pressure-Injection-Machine-For-Injection-Mobile-Battery-Injection

Low-Pressure-Injection-Machine-Mould
Low-Pressure-Injection-Machine-Mould

Low-Pressure-Injection-Machine-Mould
Low-Pressure-Injection-Machine-Mould
