BTS-4C50V10A is CE certified four channel battery test system for Li-ion, LiFePO4, Ni-MH, NiCd and lead acid battery pack up to 50V and 10A maxper channel.The battery analyzer
is designed according to the international standard: each channel of the system
has an independent constant-current source and a hardware constant voltage source.
Constant-current source and constant voltage source can be programmed and controlled as desired.
In addition, an independent pulse source is added to each battery channel to meet with the requirements
of dynamic internal resistance measurement.

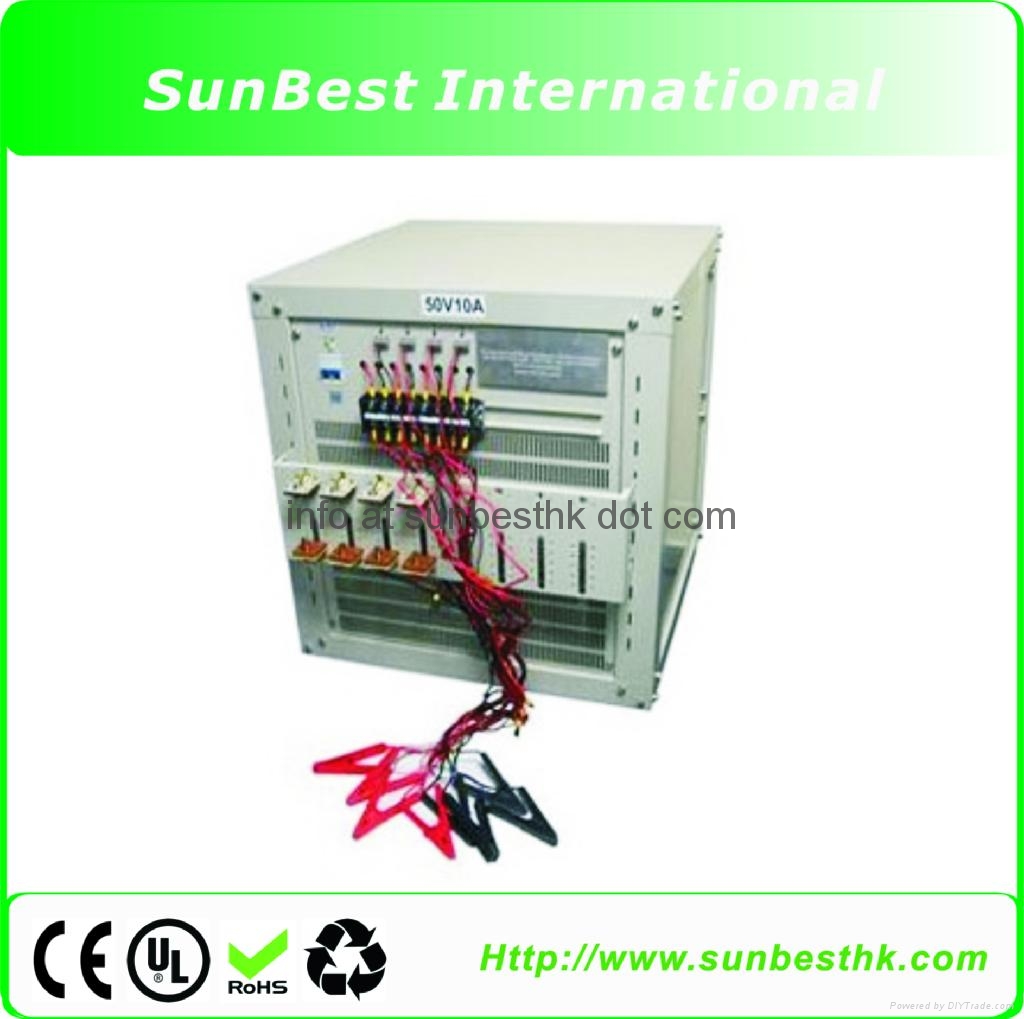

BTS-4C50V10A battery analyzer is installed in a heavy duty steel casing with four mobile wheels for
easy moving.A brand name15.4" Laptop computer with Window 7 and operation software is included
for immediate use.
1.Four independent programmable channels. Each channel can set different working modes and
works independently.Fine programming characteristic. The software can set various working modes
for measuringcapacity and cycle life of all types of rechargeable battery cells, includes constant current
discharge, constant current charge,constant voltage charge, rest, as well as voltage, current, time,
capability, negative voltage slope,and other limit conditions. The calibration software can easily calibrate
the analyzer and revise the case number.

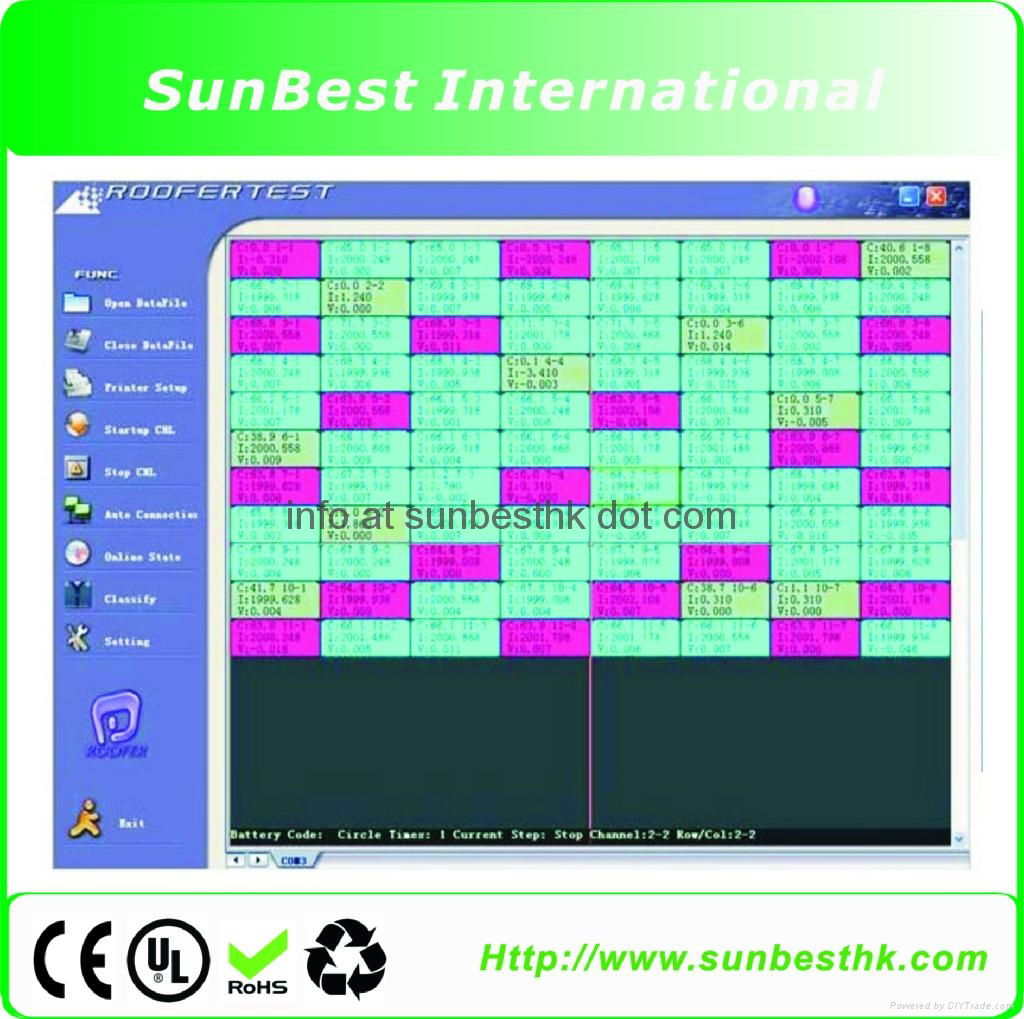

2.Windows-based software interface for easy operation is included with real-time monitoring windows
and integrated graph/data windows, the testing process can be observed more directly and efficiently.
During the test, the software will give timely instructions and warnings, provide intelligent help both in
English and Chinese.
3.Powerful data and graph processing function. The software uses standard SQL data base
management and is compatible with Access, Excel and features large data processing capacity.
The user can define thecurve by different types such as voltage time curve, current time curve, capacity voltage curve, loop timescharge/discharge capacity curve,loop times charge/ discharge efficiency curve,
etc, and then, make curve compare both by visually and statistically.
4.Complete test process record (log function). BTS-4C50V10A can make a complete record of all the events happened in the test.
By checking therecord,user can more easily find these external interferential causes.
5.Intelligent power failure protection. If power failure during the testing, thesystem will shutdown running
channels and, once power recovers, it will automatically resume those stopped channels and ensure
that the test is normally conducted and the date will never lose any cases.
6.Specially made battery holders. Alligator clips with cable.
7.Precision current: The system provides +/-10 A current output range at 0.1 % accuracy.
8.Input voltage: Please choose 110V AC or 220 - 240V AC in product option
9.12 months warranty.
10.User Manual & Calibration Software is available upon requested.
Input power:110VAC / 60Hz or 220 - 240VAC 50HZ
Power output range:+/- 10 A
Voltage measurement range:+50 V
Input impedance:=> 10 m-ohm
Power:2000 W total
Current measurement accuracy:+/- (0.2% of reading + 0.1% of range)
Voltage measurement accuracy:+/- (0.1% of reading + 0.05% of range)
Time measurement resolution:Second
Cycle measurement range:1-9999 times
Data register conditions:Time interval: (5-900S)
Rangeof Voltage:(1.2 -50 V)
Range of Current:(0.2-10 A)
Port RS232 or RS232 to USB Adaptor
Measurement for battery pack Li-Ion:3.7V-37V @ 10A max
Lead Acid:2V-48V @10A max.
Dimension:525L x 485w x 385H mm
